Torque Sensor for Belt Pulleys
Dieser Sensor hat eine berührungslose und digitale Signalübertragung von Rotor zu Stator, also ohne
Signalverf?lschung und wartungsfrei.
Nominal (rated) torques 50 N.m,
100 N.m, 200 N.m, 500 N.m,
1 kN.m, 2 kN.m, 3 kN.m, 5 kN.m
and 10 kN.m
24-hour national online service:
025-84363968- Introduction

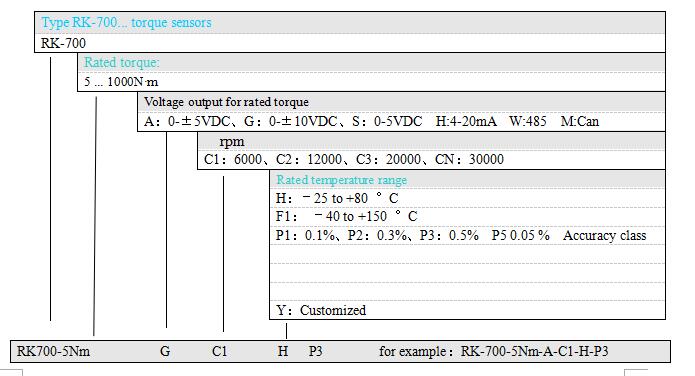

- List
- Notice
| Rated capacity | ±50 N?m ~ ±3 kN?m | |||||||
| Safe overload | 150 %R.C. | |||||||
| Ultimate overload | 300 %R.C. | |||||||
| Rated output | 0 V ~ ±10 V0 V ~ ±5 V 4-20mA 5-15kHz 485 CAN | |||||||
| Accuracy of detected value |
Digital : ±0.5 %R.O., Analog : ±0.25%R.O.±0.1%R.O. (including linearity, hysteresis and repeatablity.) |
|||||||
| Maximum rotation speed |
RK-700100NM ~ -300NM : 5 000 rpm RK-700-500NM, -1KNM :4000 rpm RK-700-2KNM, -3KNM : 35 00 rpm |
|||||||
| Temp. range, safe | -10 ℃ ~ 70 ℃ | |||||||
| Temp. range, compensated | 0 ℃ ~ 60 ℃ | |||||||
| Temp. effect on zero balance | 0.02 %R.O./10 ℃ | |||||||
| Temp. effect on output | 0.03 %LOAD/10 ℃ | |||||||
| Zero shift by rotation | 0.5 %R.O.p-p (at WB＝1 kHz) | |||||||
| Mechanical characteristics | 100NM | 200NM | 300NM | 500NM | 1kNM | 2KNM | 3KNM | |
| Torsional peculiar pitch (kHz) | 5.357 | 5.778 | 6.577 | 6.413 | 6.274 | 4.040 | 4.508 | |
| Bending peculiar pitch | ||||||||
| Radial direction (kHz) | 3.375 | 3.497 | 3.763 | 3.919 | 4.016 | 2.151 | 2.368 | |
| Thrust direction (kHz) | 3.966 | 4.065 | 4.284 | 4.404 | 4.988 | 2.672 | 2.844 | |
| Twist angle at rated capacity (°) | 0.015 | 0.027 | 0.031 | 0.037 | 0.049 | 0.067 | 0.082 | |
|
Accuracy safe bending load (N) |
75 | 150 | 225 | 375 | 750 | 800 | 1 000 | |
|
Accuracy safe thrust load (N) |
65 | 130 | 195 | 325 | 650 | 3 750 | 12 000 | |
| Class of protection | IP54 | |||||||
| Material | Rotor part : Alloy steel, Stator part : Alluminium alloy | |||||||
